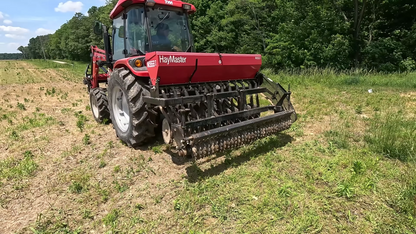

hay seed planter Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96

hay seed planter Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96Product Description Kasco Hay Master Min Till Drill Model KHM 72 & KHM 96 Working Width 72" & 96" Horsepower 45 55 HP For Tractors DESCRIPTION Built for pasture renovation, roadside restoration, and wildlife habitat development, the Kasco Hay Master Min Till Drill Series offers rugged performance with minimal soil disturbance. Featuring tight 6" row spacing, spring loaded disc blades, and cast iron cultipackers, these drills ensure consistent seed

Product Description

Kasco Hay Master Min-Till Drill | Model KHM-72 & KHM-96 | Working Width 72" & 96" | Horsepower 45-55 HP | For Tractors

DESCRIPTION

Built for pasture renovation, roadside restoration, and wildlife habitat development, the Kasco Hay Master Min-Till Drill Series offers rugged performance with minimal soil disturbance. Featuring tight 6" row spacing, spring-loaded disc blades, and cast iron cultipackers, these drills ensure consistent seed placement and optimal germination—even on rough terrain. With ground-driven metering and optional brome agitators, the Hay Master series delivers versatility and efficiency for hay producers and land managers.

Key Features

• Available Working Widths: 72" (KHM-72) and 96" (KHM-96) models for varying field requirements
• Horsepower Range: Designed for 45–55 HP tractors
• Row Configuration: 12 rows on KHM-72; 16 rows on KHM-96 with consistent 6" row spacing
• Seedbox Capacity: 4.4 bushels on KHM-72; 7.7 bushels on KHM-96 for extended operation
• Hitch Compatibility: Fits 3-point Category I & II tractors for versatile mounting
• Metering System: Ground-driven for simple, reliable seed metering
• Agitator Option: Optional Brome Agitator available for specialty seeding applications
• Cultipacker Design: Spring-loaded cast iron ensures consistent seed-to-soil contact
• Frame Architecture: Compact close-coupled frame ideal for precision tillage
• Unit Weight: 1060 lbs (KHM-72) and 1400 lbs (KHM-96) — robust builds for tough terrain
