Description
eti compact control gear ETI8XU208BThe Sound Town ETI8XU208B installation speaker set is an exceptional audio solution that comprises: (8) CARME U208BG3 Dual 8" Passive 2 Way Wall Mount Loudspeaker (1) ETi 84 8 Channel Power Amplifier This integrated system is engineered to deliver precise control over each speaker, ensuring uniform sound distribution and enhanced clarity across various environments. Ideal for medium to large meetings, the ETI8XU208B set excels in conferences,
The Sound Town ETI8XU208B installation speaker set is an exceptional audio solution that comprises:
- (8) CARME-U208BG3 Dual 8" Passive 2-Way Wall-Mount Loudspeaker
- (1) ETi-84 8-Channel Power Amplifier
This integrated system is engineered to deliver precise control over each speaker, ensuring uniform sound distribution and enhanced clarity across various environments. Ideal for medium to large meetings, the ETI8XU208B set excels in conferences, commercial installations, and other professional audio applications.

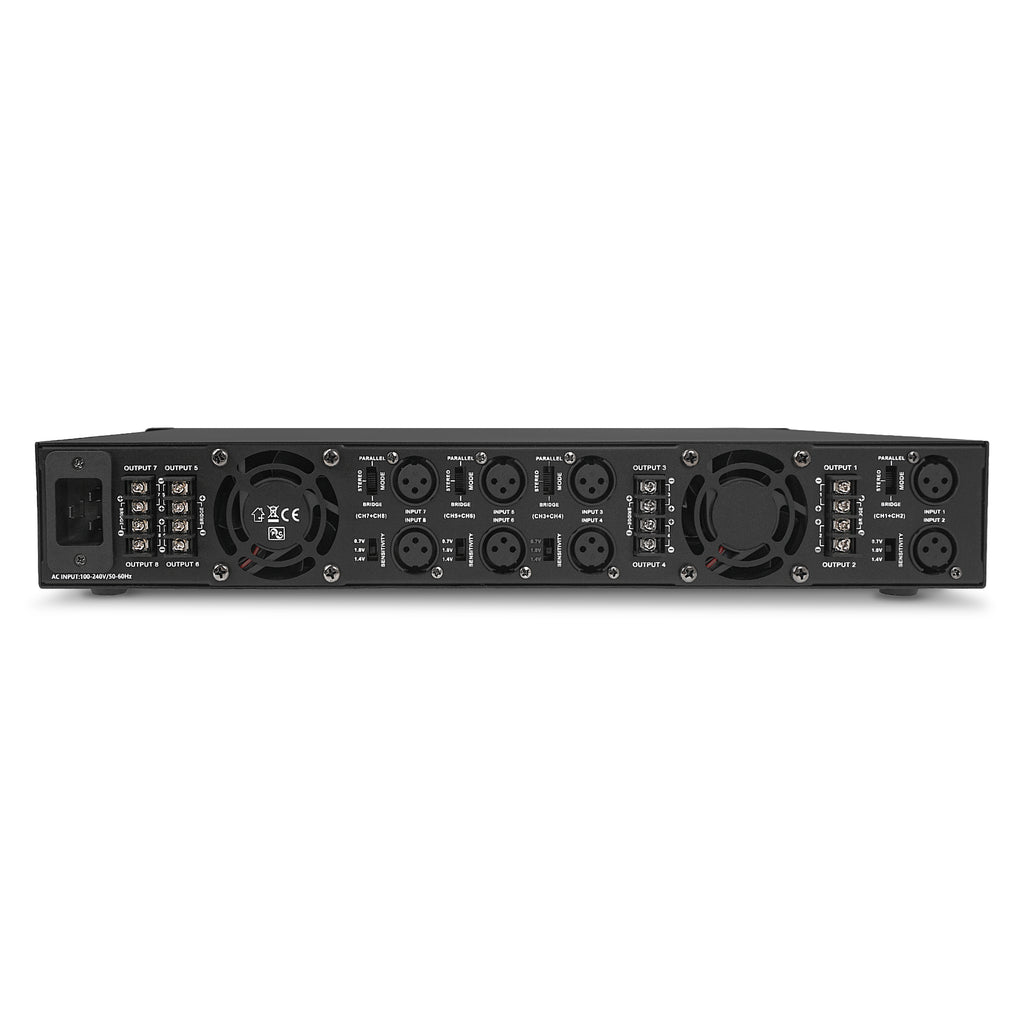

The MODE Audio ETi-84, an 8-channel high-density Class-D amplifier that is rack-mountable and built for optimal performance. With a power output of 8 x 800W RMS at 4Ω and 8 x 400W RMS at 8Ω, it guarantees clear and powerful audio. The amplifier features eight balanced XLR inputs and terminal block connectors, providing extensive compatibility with various audio setups. Its compact 1.5U design allows for easy integration into existing systems.
The CARME-U208BG3 installation speakers are engineered with two 8” woofers and 1.4” titanium compression driver, delivering 300W RMS and 600W program power at 4 ohms for balanced audio. The sturdy 5/8” textured plywood construction and heavy-duty metal grille ensure durability, making it suitable for touring applications while the U-bracket allows for secure wall mounting in any indoor setting. Compared to traditional 70V/100V systems, the ETI8XU208B set provides superior audio quality with lower impedance for enhanced clarity. The ETi-84 amplifier is housed in a heavy-duty metal chassis, ensuring durability in demanding environments, while Power Factor Correction (PFC) technology enhances efficiency and stabilizes output quality, making it an ideal choice for professional audio applications.
FEATURES
- SOUND TOWN ETI8XU208B INSTALLATION SPEAKER SET: The ETI8XU208B set includes (8) CARME-U208BG3 wall mount speakers, and (1) ETi-84 8-channel power amplifier, providing a fully integrated speaker system that offers precise control over each speaker, ensuring uniform sound distribution and enhanced clarity. Its design is ideal for medium to large meetings and is well-suited for conferences, commercial installations, and other professional audio applications
- MODE AUDIO ETi-84 8-CHANNEL AMPLIFIER: The MODE Audio ETi-84 is an 8-channel high-density 1.5U rack-mountable Class-D amplifier, delivering 8 x 800W RMS at 4Ω and 8 x 400W RMS at 8Ω, ensuring reliable performance for professional live sound applications, meeting rooms, conferences, and installations. Featuring 8 balanced XLR inputs and 8 terminal block connectors, it offers broad compatibility with various audio setups.
- CARME-U208BG3 WALL-MOUNT SPEAKER: Featuring two 8” woofers and 1.4” titanium compression driver, delivering 300W RMS and 600W program power at 4 ohms for balanced audio. The sturdy 5/8” textured plywood construction and heavy-duty metal grille ensure durability, making it suitable for touring applications while the U-bracket allows for secure wall mounting in any indoor setting
- PREMIUM AUDIO PERFORMANCE: Compared to 70V/100V setups, this system offers superior audio quality with lower impedance for richer, more detailed sound and enhanced clarity. It delivers higher power output for consistent performance in larger venues, with independent channel tuning ensuring precise coverage and minimal distortion. Efficient signal transmission further reduces loss over distance, making it an ideal choice for professional audio environments.
- ADVANCED DESIGN & EFFICIENCY: Housed in a heavy-duty metal chassis, the ETi-84 is built to withstand demanding environments, delivering long-term durability and reliable performance. The Power Factor Correction (PFC) technology increases efficiency, reduces heat, and stabilizes output quality.
SPECIFICATIONS
Specifications
| Model | CARME-U208BG3 |
| Active / Passive | Passive |
| Frequency Range | 55 Hz - 20 kHz |
| Frequency Response | 60 Hz - 20 kHz |
| Sensitivity | 98 dB |
| SPL Max | 130 dB |
| Dispersion | 90º x 60º (H x V) / 90º x 60º (V x H) |
| Configuration | 8" multi-angle full-range loudspeaker |
| Transducer | LF: 2 x 8", HF: 1 x 1.4" titanium compression driver |
| Voice Coil | -- |
| Magnet | -- |
| Impedance | 4Ω nominal |
| Power Handling | 300 RMS / 600W Program |
| Enclosure Material | High-grade 100% birch plywood |
| Mounting Hardware | U-bracket |
| Finish | Texture coating |
| Grill & Rigging Component | Steel with anti-corrosion coat |
| Amplifier | -- |
| Input | SPEAKON, Barrier Strip |
| Output | SPEAKON, Barrier Strip |
| Signal Processing | -- |
| Control | -- |
| Indicator | -- |
| Voltage | 100V-240V (50-60 Hz) |
| Crossover Parts# | -- |
| High Frequency Driver Parts# | -- |
| Low Frequency Woofer Parts# | STLF-CARME108 |
| Replacement Horn | ST-U208-HORN |
| Model | ETi-84 |
| Stereo Power (8Ω) | 8 x 400W |
| Stereo Power (4Ω) | 8 x 800W |
| Bridge Power (8Ω) | 4 x 1600W |
| Rated Power Demand | 110V or 220 V±10%, 50/60 Hz |
| Gain/Sensitivity | 0.7/1.0/1.44V |
| Frequency Response | 20 Hz - 20 kHz (1W @ 8Ω, ± 0.5 dB) |
| S/N Ratio | 103 dB |
| Input Impedance | 20kΩ balanced |
| Total Harmonic Distortion (THD) | <0.1% |
| Damping Factor (8Ω) | >400 |
| Slew Rate | 40V/ us @ 8Ω |
| Input Connector | Balanced XLR-F |
| Output Connector | Terminal Block |
| Functions Switch | Sensitivity / Mode |
| Protection | Soft start, DC, Short circuit, Over load, Over heat, Clip |
Dimension & Weight
| Model | CARME-U208BG3 | ETi-84 |
| Product Width (in.) | 9.2" | 19.0" |
| Product Height (in.) | 22.0" | 2.52" |
| Product Depth (in.) | 9.4" | 13.0" |
| Product Weight (lb.) | 29.7 lbs | 14.1 lbs |
| Package Width (in.) | 12.4" | 21.7" |
| Package Height (in.) | 25.4" | 5.5" |
| Package Depth (in.) | 13.0" | 19.7" |
| Package Weight (lb.) | 32.3 lbs | 23.1 lbs |
Warranty/Certifications
| Manufacturer Warranty | 1 Year |
DOWNLOADS
▶ ETi-8 Series User Manual
▶ Installation Guide
▶ CARME Series Brochure
